Three Designs for PEX Plumbing Systems
Acquire the pros and cons of trunk-and-branch, habitation-run manifold, and submanifold PEX systems.
Plumbers are making the transition from copper to PEX plumbing (here's how to literally transition from copper to PEX). Partially, that's because PEX is more affordable and arguably easier to work with. PEX connections don't require soldering and even complicated-looking manifold systems are rather easy to build. Another reason is efficiency. PEX does not make your plumbing arrangement more efficient, things like hot-water recirculation and abode-run layouts practice. And PEX is well-suited to these types of systems.
Incorporating manifolds into the layout can salve water and energy because you eliminate almost of the pipe between the water heater and the faucet. Although blue (common cold h2o) lines are shown in these layout examples, hot-water layout would be similar. Three design options for PEX plumbing systems are: trunk-and-co-operative systems, home-run manifold systems, and sunbmanifold systems.
Torso-and-branch systems are easy, just waste matter a lot of water
Traditional systems consist of large-bore (usually 3/4 in.) trunk lines to distribute water throughout a house. Smaller branch lines (ane/2 in. and 3/8 in.) tee off to feed individual fixtures. Trunk-and-branch systems have several disadvantages, notably a large number of fittings, which are costlier, slower to install, and more likely to leak than a single run of piping. Also, a lot of h2o goes down the bleed before hot water reaches the faucet.
Home-run manifold systems utilize the least hot h2o and the most pipe

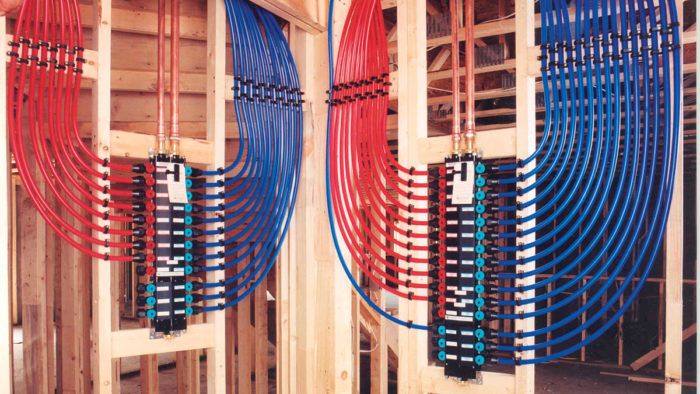

A large-diameter (iii/four in.) main water line feeds the manifold; smaller lines run from the manifold to each fixture. Any fixture in the house can be close off at the manifold. And because home-run systems don't rely on a big pipe for distribution, you save both water and energy. Simply put, you don't have to leave the faucet running as long before hot water reaches the sink. This design flexibility has a price, however. Because a defended line is going to each fixture, you utilize a lot of PEX and drill a lot of holes.
Submanifold systems tin be designed to save hot water
There are many ways to design submanifold systems, which require far less pipe and drilling than a dwelling-run organisation. Rather than one principal manifold, each bathroom, laundry, and kitchen gets its own submanifold. The simplest arrangement, pictured hither, won't save any water over a trunk-and-branch system, merely other submanifold systems can exist configured as water and energy savers past incorporating the chief manifold and a recirculating pump.
For more than on PEX:
Connect PEX With ASTM F2080 Expansion Fittings and Pinch Sleeves –With contumely fittings and compression sleeves, F2080 is the Rolls-Royce of PEX fitting organization.
Connecting PEX Plumbing –A shut look at the ever-expanding options for joining PEX plumbing.
Connect PEX With Viega PEX Press Fittings –Viega has developed one of the fastest and easiest methods for joining PEX.
PEX Water Piping Connections –Leakproof joints are made faster than soldering.
